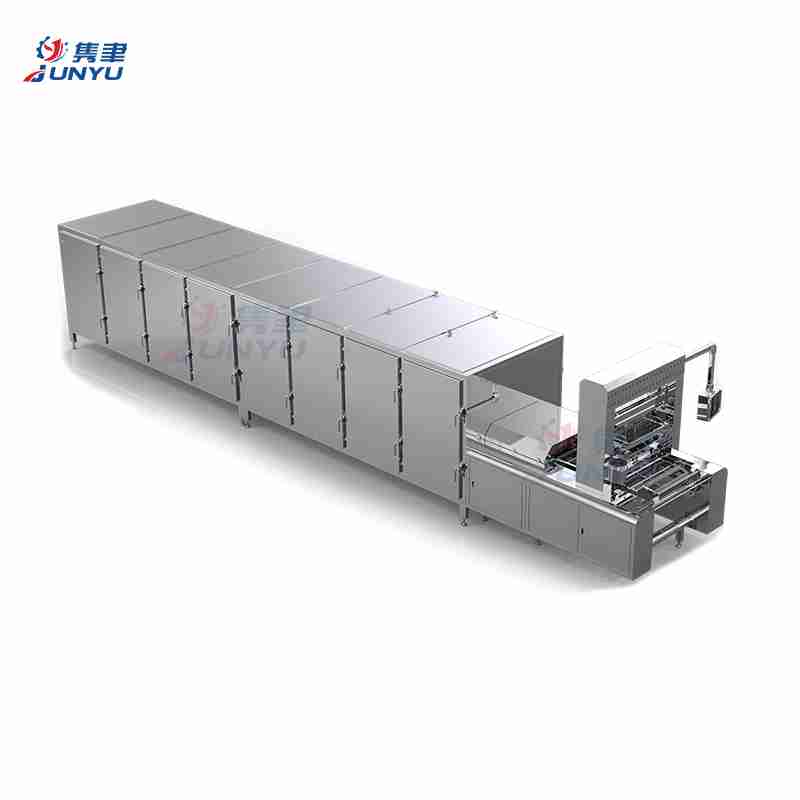

This automatic gummy candy production line was built for a customer who needs to produce about 12000-21000pcs in an hour.
The gummy candy-making machine with Kitchen system can both produce Pectin， Gelatin, etc… and the candy depositing system with automatic feeding, Automatic driving for molds, Automatic depositing, Automatic De-molding, and chilling unit with reasonable price & faster delivery.
| Model | JY-40 | JY-80 | JY-150 | JY-300 | JY-600 | JY-1500 |
| Capacity PCS/H | 8,000- 12,000 | 12,000- 21,600 | 25,000- 43,200 | 50,000- 86,400 | 10,000- 172,800 | 384,000- 768,000 |
| Length | 13ft/4m | 26ft/8m | 40ft/12m | 40ft/12m | 46ft/14m | 53ft/16m |
One step cooking system
It is an automatic ingredient dissolving and mixing system for pre-cooking the syrup of candy and beverage solutions.
Mix raw materials such as sugar and glucose. Add all the raw materials into the cooker, the cooking is complete, and the syrup will be transferred to the storage tank through the pump.
The storage tank adopts a multi-layer design, and the interlayer can be filled with hot and cold water to maintain the temperature of the liquid in the tank, and cool or store different types of pectin or gelatin as a buffer tank for continuous production.
- Milling & cooking & Storeage
- Independent control system
- Temperature setting
- Stainless steel scraping stirring
- Homogenizer
- Digital display
- Visual window
- Convenient discharge
- Quick assembly & quicker use
- Jacketed for heating
- Stainless steel framework, , Insulated sides.
- Complete automation system
- Independent control system
- Transfer by pump & pipes
- modularization for a quick install
Gummy-making machines can manufacture any type of gummy candies like gummy bears and more in helping gummy clients to succeed, we are an expert in gummy-making machine manufacturing.
Candy with CBD is very popular especially in the fast-growing CBD industry, take this chance to skyrocket your business we will 100% support your business by providing whole CBD gummy manufacturing equipment and also financial service. Get an instant quote now.
Kitchen system
In-line mixer or static mixer
Oil sprayer
Depositor
Quick change type of molds
Cooling Tunnel
De-molding system
Sugar sanding system
Oil/wax polishing system
Dring Plate and Trolley
Q&A
Q1: I don’t have experience & formula can you help?
-A: Yes, we are offering a full scope plan from formula to product support
Q2: Can I make hard candy on this machine?
-A： Yes, but also taffy candy, lollipops too.
Q3: What’s the machine voltage and Amp?
-A: We customize the equipment according to your voltage, and with different voltages, we will calculate the ampere list for you.
Q4:I want to add a pharmacy inside the candies does your machine has any certificate to help me pass the FDA requirements?
-A: Yes, We have CE and used all brands by UL&EU listed in strict accordance with GMP Stander.
Q5：What else do I need to prepare does this machine need clean compressed air?
-A: C onside most of the customer’s space limit this machine only need to connect the power, save customer’s cost and complex evolution of compress airflow. Use servo more simple & smart control no need connect extra systems for the machines.
Q6: How should I set the temperature and candy weight?
-A: By control box and touch screen setting to adjust.
Q7: Do I need to move the molds to the cooling step?
-A: No, the machine is fully automatic from the depositor and cool, you only need to collect the candy and the machine exit!
Q8: Do I need some expert to install the machine?
-A: Machine electrical is by the quick coupler and easy setting on a touch screen like a smartphone or if you need we have local technical support team can help.
Q9：Whats the difference between 40 & 80？
-A：40is more shot in length so require fewer molds and less space, The biggest difference is that 40 only can make base function but 80 is a smarter system and has more capacity
We Provide a Nutrition gummy bear candy-making machine, If you are interested in Nutrition gummy bear candy-making machine, You can browse related products and initiate consultations on our website.
Why choose junyu?
- OverseaService team
- NormathAmerica local service
- Anumalmachine maintance
- 24H/7daysParts Center
- FreeFactory layout Design
- Free customized shape sample
- Product formuladesign
- machine design
- 3DDisplay of equipment scheme
- Customerfactory production tour
- Real factory Professional& Reliability
- Get a quote now
